380V 16A Explosion Proof Plug And Socket There Phase Four Wire Ex-Proof Plug Socket

Brand Name : CROWN EXTRA

Model Number : AC/AC8050

Certification : CE,ATEX,ROHS

Place of Origin : CHINA,JiangSu

MOQ : 1PC

Price : USD$8~USD$507/1PC

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100000 Piece/Pieces per Month

Delivery Time : 5-8 work days

Packaging Details : Cartoon Packing

Ex mark : Ex d e IIC T4 Gb / Ex tD A21 IP65 T80℃

Material : Aluminum Alloy/GRP

Voltage : 220/380VAC

Plug type : 1P/2P/3P+N+PE

Warranty : 1 year

Contact Now

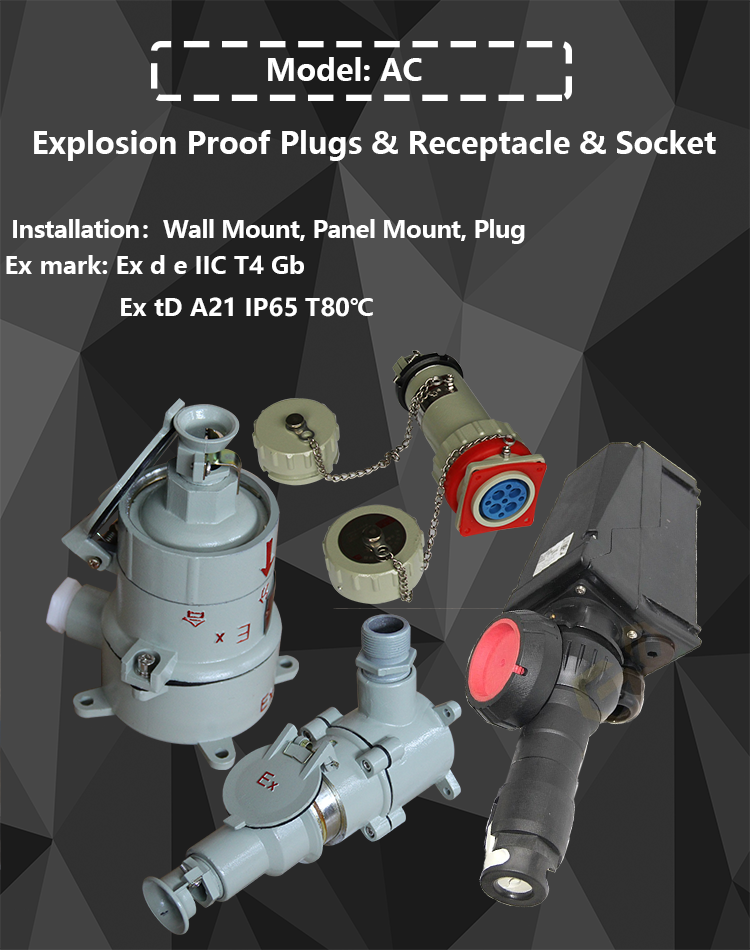

380V 16A Explosion Proof Plug And Socket There Phase Four Wire Ex-Proof Plug Socket



Industrial Explosion Proof Plugs and Sockets Applications

1. Suitable for ambient temperature:-20℃ ~ +40℃;
2. Suitable for dangerous places of explosive gas mixture: 1 zone and 2 zone;
3. Suitable for combustible dust places: 21 and 22 districts
4. Suitable for dangerous environment such as petroleum exploitation, refining, chemical industry, military industry, offshore oil platform, oil tanker, metal processing, etc;
5.Implementation standards: GB 3836.1-2010/GB 3836.2-2010/GB 3836.3-2010

GB 12476.1-2013/GB 12476.5-2013



380V 16A Explosion Proof Plug And Socket There Phase Four Wire Ex-Proof Plug Socket



Explosion proof plug socket

Features



1. Aluminum alloy die-casting shell, high-speed shot peening treatment, surface high-voltage electrostatic spraying, corrosion resistance, anti-aging.
2. Stainless steel exposed fasteners, high corrosion resistance.
3. The plug has built-in interlocking mechanism. Only when the switch in the socket breaks, the plug can be pulled out.
4. Steel pipe or cable wiring is acceptable

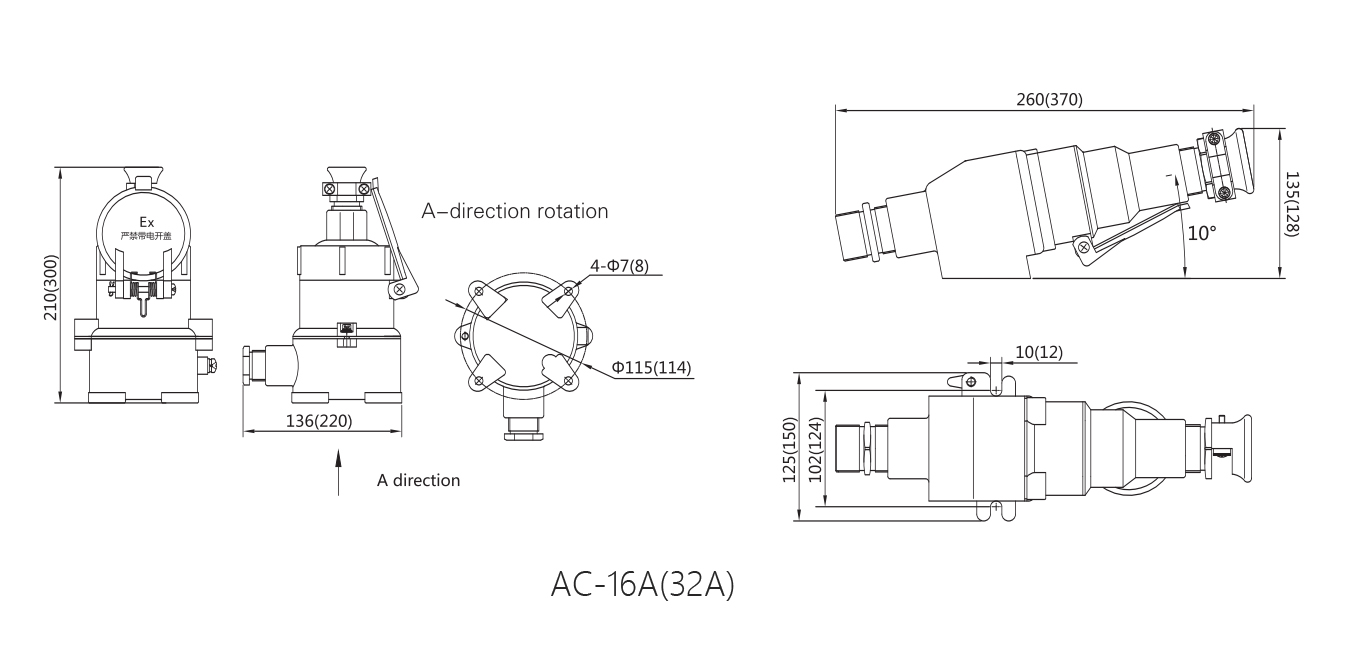

Ordering Information

Models

AC-16A

AC-32A

AC-63A

Entries

M25*1.5 (suitable for
Φ8mm-Φ17mm cable)

M40*1.5 (suitable for
Φ13mm-Φ27mm cable)

M40*1.5 (suitable for
Φ13mm-Φ27mm cable)

Rated Current [A]

16

32

63

The cable for plug

Φ8mm-Φ19mm

Φ12mm-Φ28mm

Φ12mm-Φ28mm

Inlet threads

G 3/4"

G 1 1/4"

/

Nos. of pole

1P+N+PE, 3P+N+PE

Ex rate

Ex d e IIC T6 Gb

Rated voltage

AC380V, AC220V

Degree of protection

IP65

Application

Zone 1&2, Zone 21&22




380V 16A Explosion Proof Plug And Socket There Phase Four Wire Ex-Proof Plug Socket

380V 16A Explosion Proof Plug And Socket There Phase Four Wire Ex-Proof Plug Socket

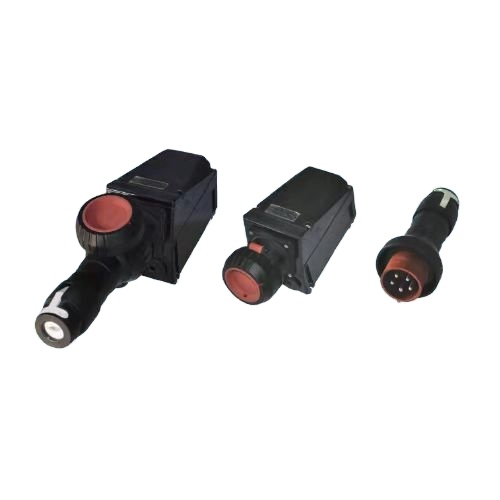

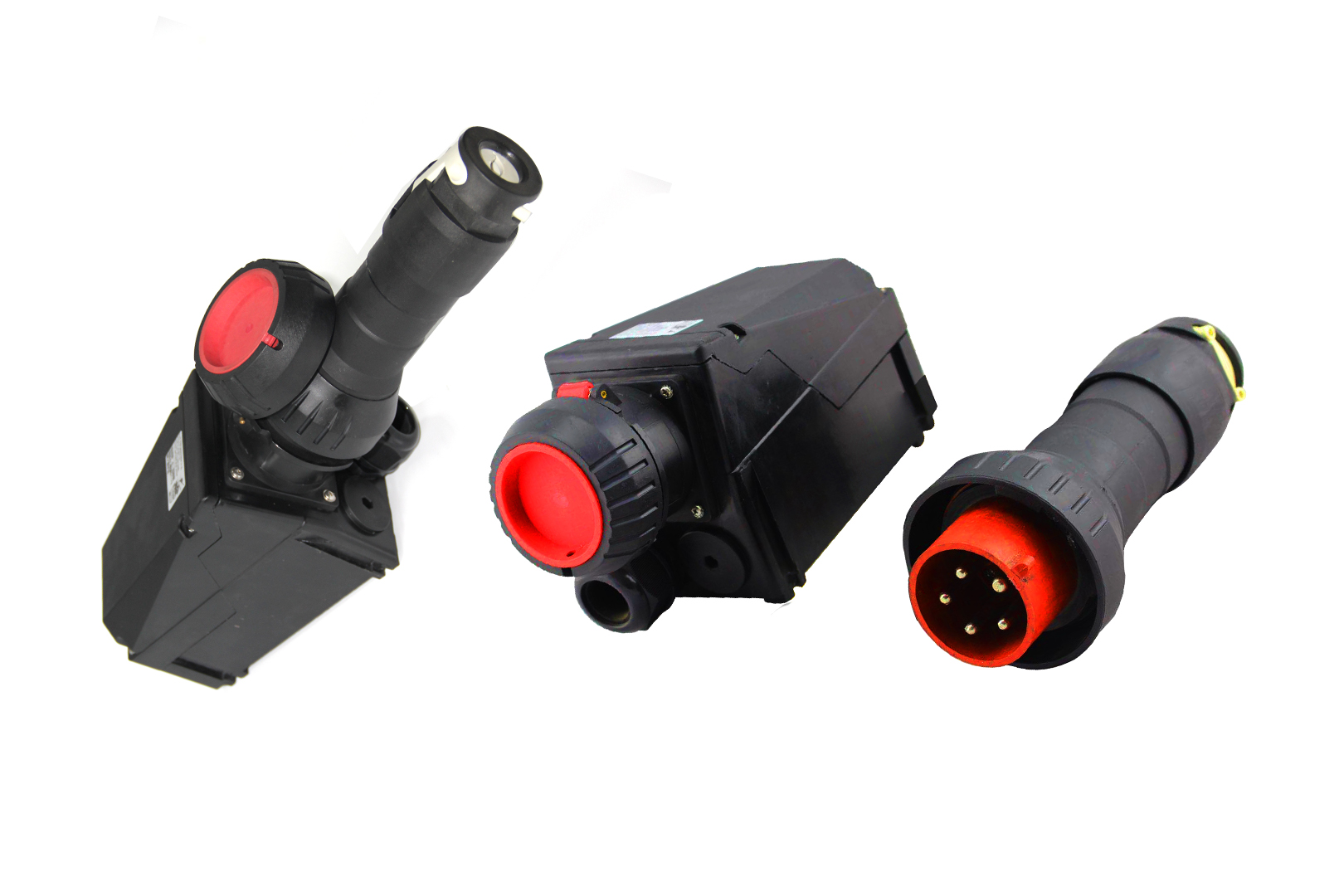

Industrial Explosion Proof Plugs and Sockets Features



1. The shell is made of glass fiber reinforced unsaturated polyester resin pressed or welded with high-quality stainless steel. It is corrosion-resistant, antistatic, impact-resistant and has good thermal stability.
2. Stainless steel exposed fasteners, high corrosion resistance.
3. The enclosure is Safety-increasing type with flameproof switch inside.
4. Pluas are connected to electrical equipment.
5. The socket is equipped with reliable mechanical interlocking device, that is, the switch can be closed only after the pluą is inserted into the socket, and the plug can be pulled out after the switch is disconnected.
6. The socket is equipped with a protective cover. After the plua is pulled out, the socket is covered with a protective cover to prevent sundries from.entering
7. Steel pipe or cable wiring is acceptable.






Ordering Information

Models

AC8060-16A

AC8060-32A

AC8060-63A

Rated Current [A]

16

32

63

The cable for plug

Φ3mm-Φ14mm

Φ11mm-Φ18mm

Φ17mm-Φ28mm

Inlet threads

G 3/4"

G 1"

G 1 1/2"

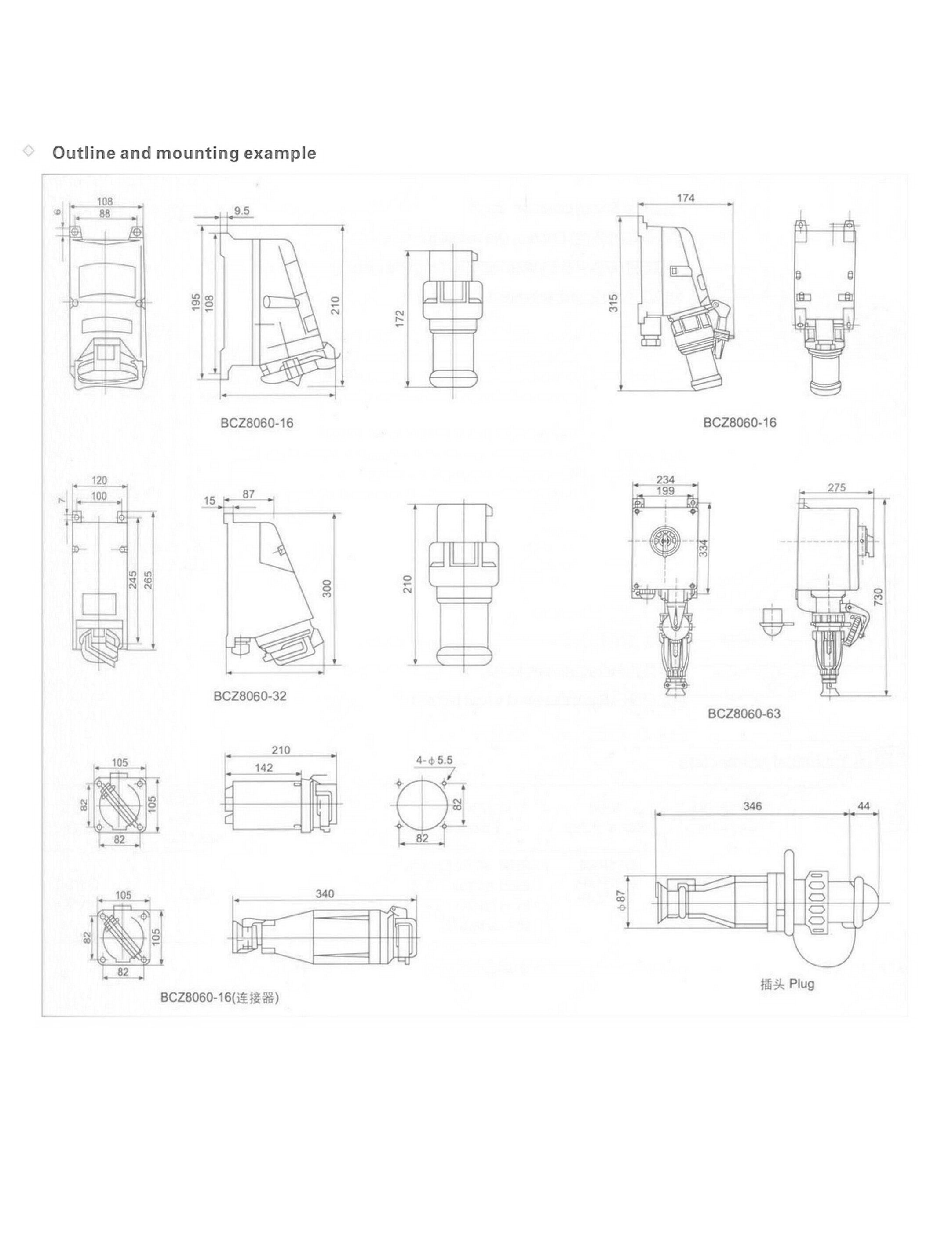

IIIustration

3 Socket, 6 Socket

Nos. of pole

1P+N+PE, 3P+N+PE

Ex rate

Ex d e IIC T4 Gb, Ex tD A21 IP65 T80℃

Rated voltage

AC380V, AC220V

Degree of protection

IP65

Application

Zone 1&2, Zone 21&22

Note

linker used for connecting distance-cable, linker current is only limited to 16A.




380V 16A Explosion Proof Plug And Socket There Phase Four Wire Ex-Proof Plug Socket

380V 16A Explosion Proof Plug And Socket There Phase Four Wire Ex-Proof Plug Socket

380V 16A Explosion Proof Plug And Socket There Phase Four Wire Ex-Proof Plug Socket

380V 16A Explosion Proof Plug And Socket There Phase Four Wire Ex-Proof Plug Socket

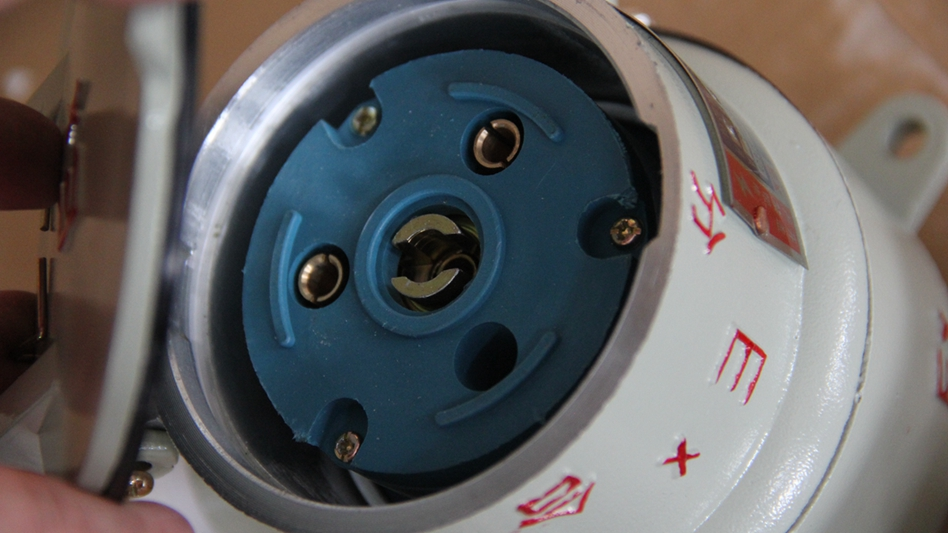

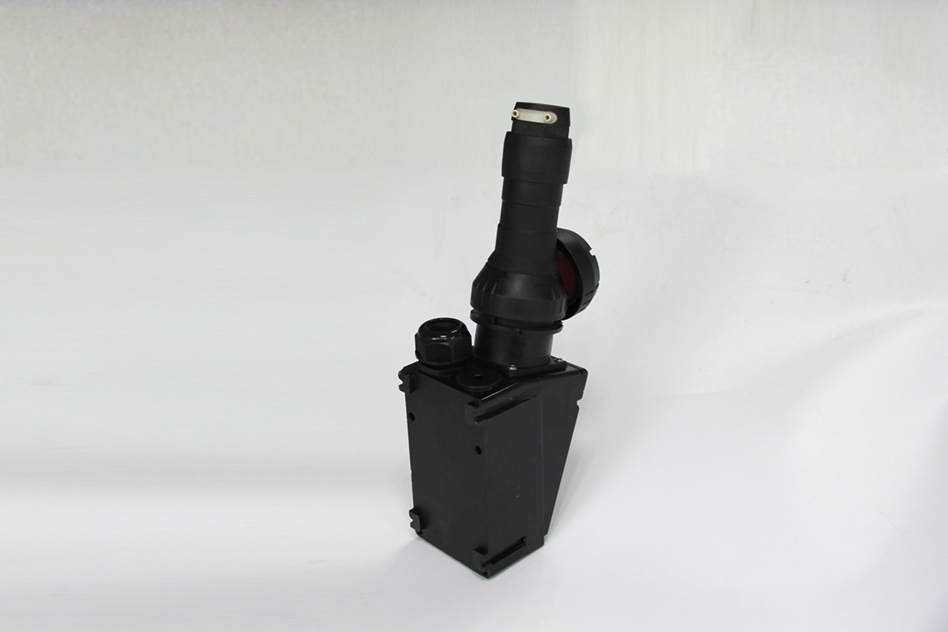

Datails Images



380V 16A Explosion Proof Plug And Socket There Phase Four Wire Ex-Proof Plug Socket

380V 16A Explosion Proof Plug And Socket There Phase Four Wire Ex-Proof Plug Socket

380V 16A Explosion Proof Plug And Socket There Phase Four Wire Ex-Proof Plug Socket

380V 16A Explosion Proof Plug And Socket There Phase Four Wire Ex-Proof Plug Socket

380V 16A Explosion Proof Plug And Socket There Phase Four Wire Ex-Proof Plug Socket

380V 16A Explosion Proof Plug And Socket There Phase Four Wire Ex-Proof Plug Socket
